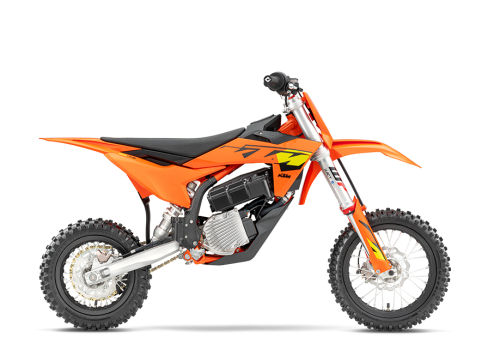

KTM SX-E 5 2027

Description

LEADING THE CHARGE

The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the petrol-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.

Engine

Electric motor
48 V - BLDC motor with outer rotor
Max. power
5 kW / 3,900 rpm
Torque
13.8 Nm
Max. motor speed
6000 rpm
Battery capacity
21 Ah
Charging time 100 %
70 min.
Rated output
2 kW / 3,200 rpm
Secondary gear ratio
8:46
Traction battery
Lithium-Ion KTM PowerPack
Charger line voltage
80-240 V/50-60 Hz
Charging power
900 W
Charging time 80 %
45 min.

Chassis

Frame design
Chrome-molybdenum steel central-tube frame
Rear subframe design
Glass fiber reinforced plastic
Handlebar
Tapered aluminum Ø 28/22/18 mm
Front brake
Disc brake
Rear brake
Disc brake
Front brake disc diameter
160 mm
Rear brake disc diameter
160 mm
Brake disc diameters (front/rear)
160 / 160 mm
Wheels
1.5 x 12"; 1.6 x 10"
Tyre width (front)
60
Tyre height (front)
100
Tyre width (rear)
2.75
Chain
415, Non-sealed
Steering head angle
66 °

Suspension

Front suspension
XACT 35 WP Upside-Down fork, Ø 35 mm
Rear suspension
XACT WP mono shock
Suspension travel (front)
205 mm
Suspension travel (rear)
193 mm
Steering head angle
66 °
Fork offset
22 mm

Dimensions

Seat height
682 mm
Wheelbase
1028 ± 10 mm
Ground clearance
259 mm


The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery. Images and illustrations of Enduro bike models show the competition state and not the homologated version.

The stated discount is exclusively available at participating, authorized KTM dealers. All information is non-binding. Printing, layout, and typographical errors as well as other mistakes are reserved. Information may be changed at any time without prior notice.

Price:
$9,995.00
Reference Number/VIN:
KTM SX-E 5 2027
Drive Away:
Yes
Make:
KTM
Model:
SX-E 5
Type:
ELECTRIC
Condition:
New
Year:
2027

Enquiry
