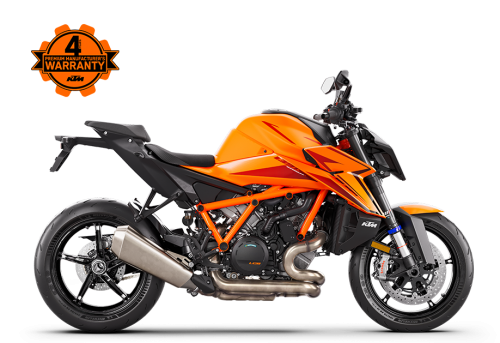

KTM 1390 Super Duke R EVO 2026

Description

THE BEAST, EVOLVED

The KTM 1390 SUPER DUKE R EVO is truly an evolved BEAST. Not only does it share the same advancement as the all-new KTM 1390 SUPER DUKE R, but it also brings intuitive WP Semi-Active Suspension Technology (SAT) to the fore. Being able to automatically adapt its suspension to the riders input or the road surface, it brings intelligence to the tarmac and into the hunt.



Engine

Design
2-cylinder, 4-stroke, V 75°
Displacement
1350 cm³
Power
190 PS
Torque
145 Nm
Transmission
6-speed
CO2 emissions
139 g/km
Cooling
Liquid cooled with water/oil heat exchanger
Engine cylinder
Twin cylinder
EMS
Keihin EMS with RBW and cruise control, double ignition
Engine oil
Motorex, SAE 10W-50
Engine stroke
4-Stroke
Drive type
Combustion
Silencer
Stainless steel primary and secondary silencer with two catalytic converters

Chassis

Front brake disc diameter
320 mm
Front brake disc diameter
12.6 inch
Rear brake disc diameter
240 mm
Rear brake disc diameter
9.45 inch
Front brake
2 x Brembo Stylema Monobloc four piston, radially mounted caliper
Rear brake
Brembo twin-piston fixed calliper, brake disc
Chain
525 X-Ring
Frame design
Chromium-Molybdenum steel trellis frame, powder coated
Steering head angle
65.3 °
Rear subframe design
Cast aluminium / Composite
Trail
101 mm
Wheelbase
1491 mm

Suspension

Front suspension
WP APEX-USD Ø 48 mm, semi-active (Gen 3)
Rear suspension
WP APEX-linkage shock, semi-active (Gen 3)
Suspension travel (front)
125 mm
Suspension travel (rear)
140 mm
Suspension travel (front)
4.92 inch
Suspension travel (rear)
5.51 inch
Rear suspension adjustment
Semi-active, electronic preload

Dimensions

Seat height
834 mm
Wheelbase
1491 ± 15 mm
Tank capacity (approx.)
17.5 l
Ground clearance
149 mm
Weight (without fuel)
200 kg
Tank capacity (approx.)
4.62 US gal
Weight fully fueled
212 kg
Wheelbase tolerance
0.59 inch
Wheels
3.50 x 17"; 6 x 17"
Wheels
Cast aluminium wheels


The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery. Images and illustrations of Enduro bike models show the competition state and not the homologated version.

The stated discount is exclusively available at participating, authorized KTM dealers. All information is non-binding. Printing, layout, and typographical errors as well as other mistakes are reserved. Information may be changed at any time without prior notice.

Price:
$35,495.00
Reference Number/VIN:
KTM 1390 Super Duke R EVO 2026
Drive Away:
Yes
Make:
KTM
Model:
1390 Super Duke R EVO
Type:
Naked
Condition:
New
Year:
2026

Enquiry
