Leading the way in innovative Side-by-Side vehicle technology is Honda’s Pioneer™ 700. Developed to suit the unique farming conditions down under, the Pioneer 700 range is fast becoming Australia’s favourite machines to work the land, with both 2 and 4 seat options offering you the flexibility you need to get the job done. Boasting Honda’s proven fuel-Injected 675cc liquid-cooled OHV single cylinder four-stroke engine, rugged durability and compact dimensions to ensure you’ll get a high level of manoeuvrability for the task at hand. The impressive turning radius will get you out of any tight spot. Striking a balance between size and capability, while still offering plenty of features, that’s the Pioneer 700s to a tee!
In many ways, this isn’t a just side-by-side. It’s a solution. Take the cargo bed—the capacity is among the tops in the industry (408kg for 700-2 and 454kg for 700-4) It’s strong and durable too so you can carry more cargo in fewer trips, saving you time. Now that’s smart.

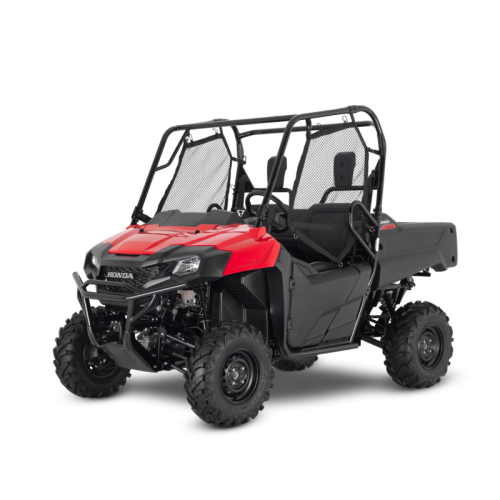

Patriot Red
| Chassis | ||
| Brakes | Pioneer 700-2 | Pioneer 700-4 |
| Brakes (F) | 2x 200mm discs | 2x 200mm discs |
| Brakes (R) | 1x 170mm disc | 1x 170mm disc |
| Steering | ||
| Power Steering | STD | STD |
| Suspension | ||
| Front Adjustability | - | - |
| Front Suspension Type | Independent double-wishbone | Independent double-wishbone |
| Front Wheel Travel (mm) | 200 | 200 |
| Rear Adjustability | preload | preload |
| Rear Suspension Type | Independent double-wishbone | Independent double-wishbone |
| Rear Wheel Travel (mm) | 230 | 230 |
| Dimensions, Weights And Capacities | ||
| Capacities | 30 | 30 |
| Dimensions | ||
| Bed Dumping Angle | 40° | 40° |
| Turning Radius (m) | 4.5 | 4.5 |
| Wheelbase (mm) | 1,950 | 1,950 |
| Bed Height (mm) | 282 | 282 |
| Bed Length (mm) | 924 | 924 |
| Bed Width (mm) | 1,154 | 1,154 |
| Ground Clearance (mm) | 270 | 270 |
| Overall Height (mm) | 1,970 | 1,985 |
| Overall Length (mm) | 2,910 | 2910 |
| Overall Width (mm) | 1,525 | 1,525 |
| Seat Height (mm) | 868 | 868 |
| Weights | ||
| Bed/Tray Weight Capacity (kg) | 408 | 454 |
| Kerb Weight (kg) | 583 | 647 |
| Max Weight Capacity (kg) | 604 | 650 |
| Towing Capacity (kg) | 680 | 680 |
| Powertrain | ||
| Engine | ||
| Bore & Stroke (mm) | 9.2:1 | 9.2:1 |
| Compression Ratio | 102 x 82.6 | 102.0 x 82.6 |
| Cylinders | 1 | 1 |
| Displacement (cc) | 675 | 675 |
| Engine Type | Liquid-cooled 4-stroke | Liquid-cooled 4-stroke |
| Fuel System | Fuel Injection | Fuel Injection |
| Starter | Electric | Electric |
| Valves | 4 | 4 |
| Transmission | ||
| Drive Modes | 2WD, 4WD, 4WD Lock | 2WD, 4WD, 4WD Lock |
| Transmission | 3-speed with reverse; manual and automatic modes | 3-speed with reverse; manual and automatic modes |
| Drive | Shaft | Shaft |
| Tyres And Wheels | ||
| Tyres | ||
| Tyres (F) | 25x8-12 | 25x8-12 |
| Tyres (R) | 25x10-12 | 25x10-12 |
| Warranty | ||
| Warranty | 36 months | 36 months |
